Topology Optimization Sample

TOPOLOGY OPTIMIZED SAMPLE

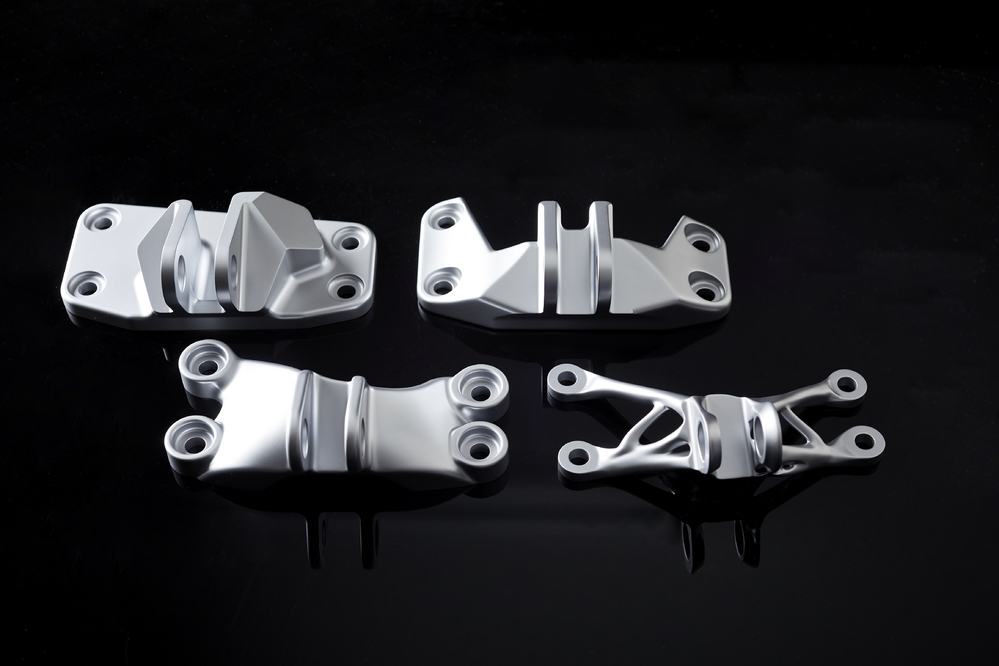

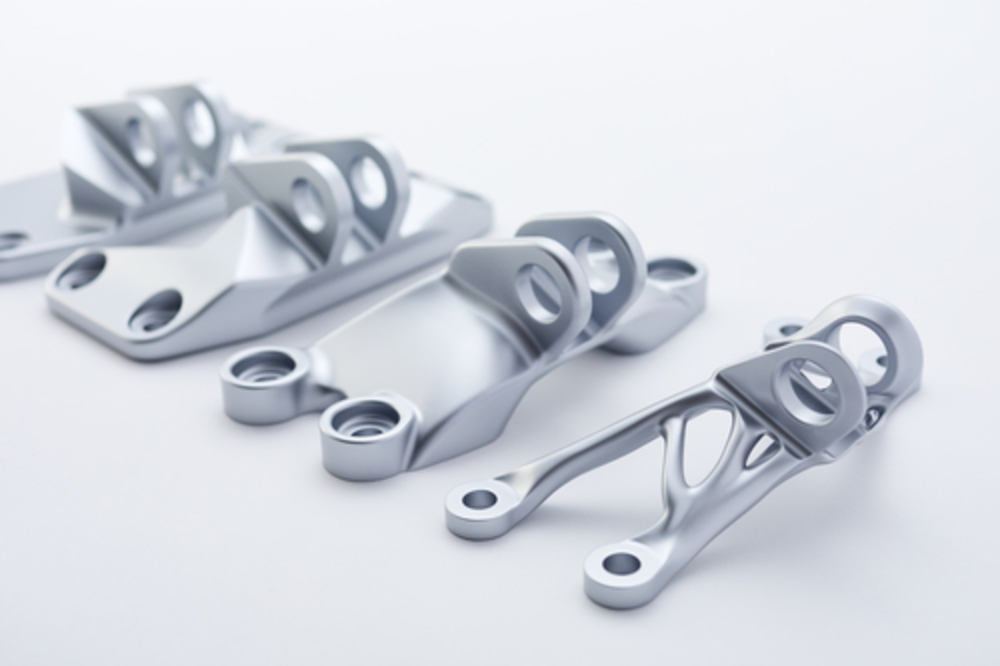

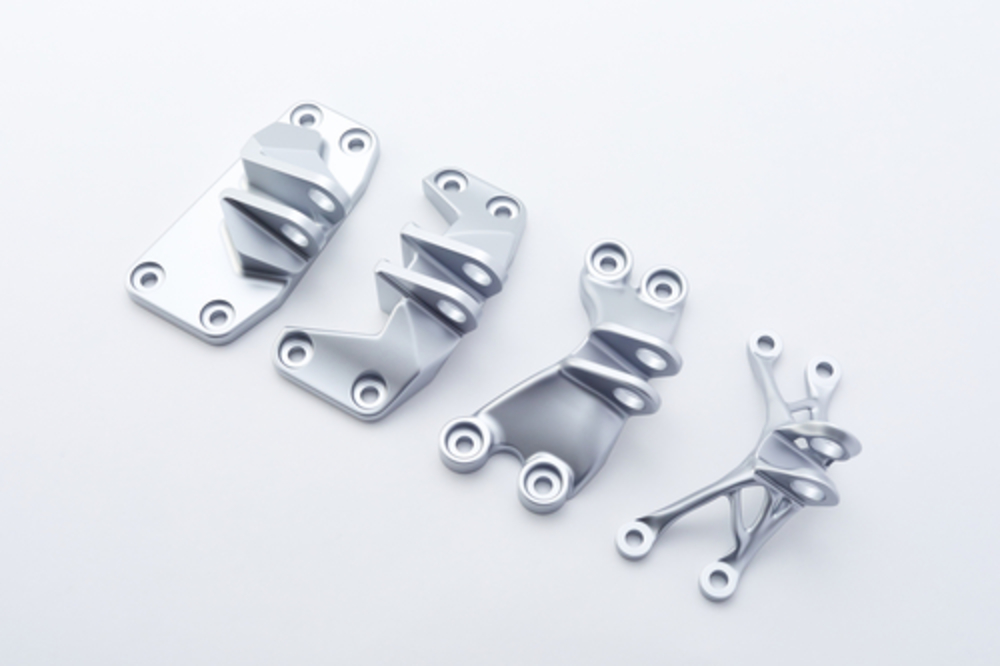

We have created a model of topology optimization by stereolithography

It is possible to three-dimensionally visualize the transition of the shape in the process of topology optimization of the structure.
You can freely decorate it with metal color as shown in the photo or decorate it with solid color.

Please use for internal and external presentations and displays.

Material: TSR-829
Construction method: Stereolithography + decorative finish + painting



Please feel free to contact us.
Adequate support will be provided by our experienced designers until prototype completion.

Pump mechanism design

Finalization

Topology Optimization Sample

Topology Optimization Sample

Back to Portfolio


COPYRIGHT © 2020 INAC. ALL RIGHTS RESERVED. INAC Inc  – PRIVACY POLICY

STEP5: Quality Assurance and Precision Inspection

A quality inspection is performed. At INAC, where quality comes first, we use CMMs, gauges, and other equipment for precision checks.

STEP4: Post-Processing and Finishing

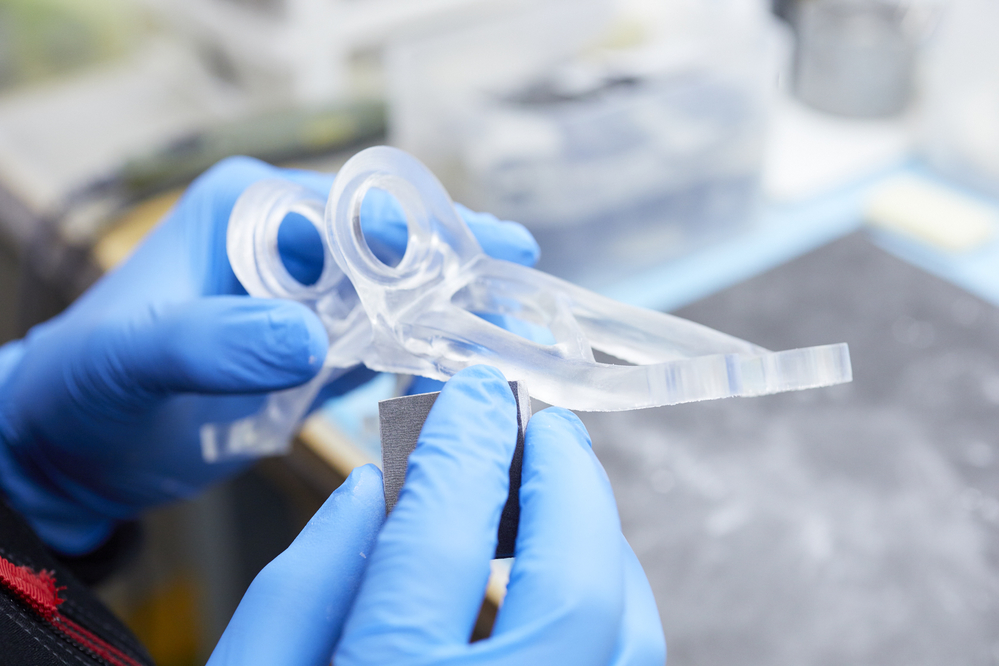

Finishing is done by removing the supports, polishing, and applying transparency treatment. It is also possible to paint and apply plating to the formed product.
